Command - PrB_Tag

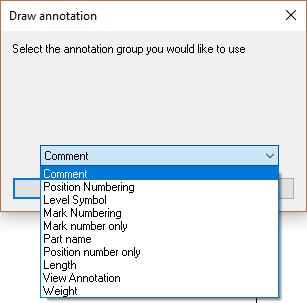

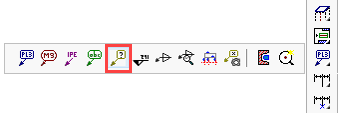

This command will draw a tag of a different group, for which no icon exists.

Having this tool, one can draw tags based on custom tag styles created by the user.


The annotations are meant to show additional information about a part on the 2D sheet.


After activating this command, you should first select the part to be annotated.

After that, the tag will attach itself to the mouse pointer : select a position and right click.

The appearance of the annotation can be adjusted by referring to Annotation Styles.
