Truss Haunch Connection
Command -
This command will add a full depth end-plate connection for a truss.
On activating the command you will be prompted to select in this order :
- The column
- The lower chord of the truss
- The upper chord of the truss

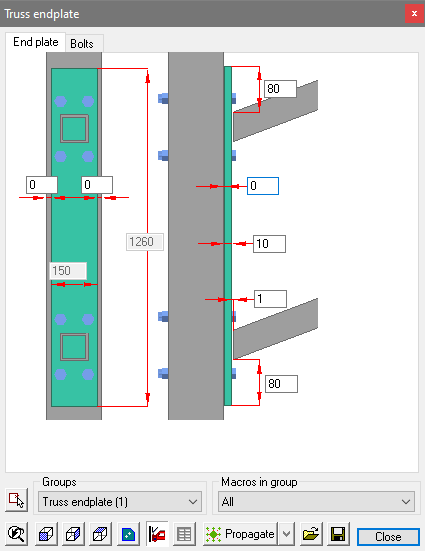

After selection, the options dialog will appear :

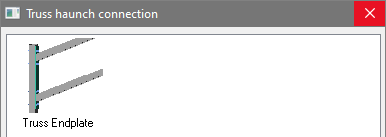

The end-plate will be drawn immediately :
|
|
