Command - PrB_AddToDims



This command allows you to add more dimension points to an existing dimension.

It works on a chain dimension, on single aligned dimensions and also on ordinate dimensions.

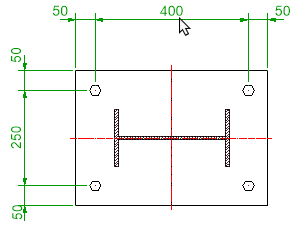

Selecting the dimension to which you want to add more dimension lines

Selecting the location for the new dimension line and the result
