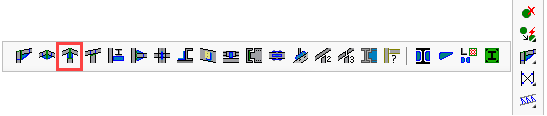

Command -


The Apex with column connection is a roof rafter connection at the apex of the roof. The rafter may be set at any angle specified by the design.

Selection order

First select rafter 1, then rafter 2, and then the column.
The order of the rafters does not matter.


When selecting the profiles to be connected, Parabuild will automatically filter the proposed connections.

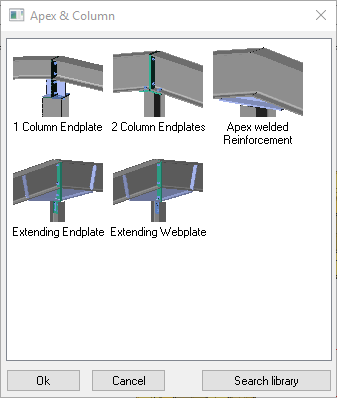

The filtering will not only be based on the profile types, but also their orientation with respect to each other. For example, Parabuild will recognize if a beam is connecting to a column flange or web. This information is used by this command to filter out the incompatible connections in the connection selection dialog.

Therefore, the presented options may differ from those illustrated here.
