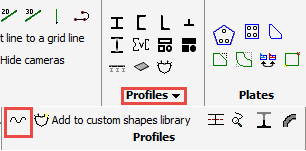

Command - Prb_Wave

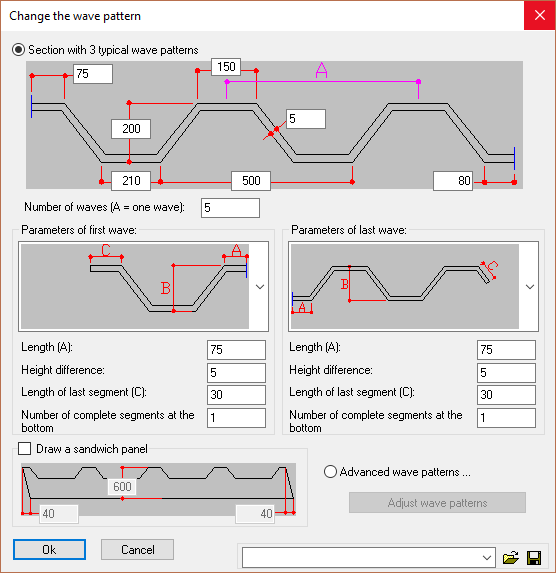

This command will draw the section of Sandwich panels or corrugated sheet metal sections as one PolyLine. This PolyLine can be used as a section to draw a profile. You can choose between 3 types of sections with help from the illustrations. The first wave, the last wave and the repeating wave in the middle.

If you want to create more waves, you have to use the option Advanced wave patterns.
