Command - Prb_CutByPoly


This command allows us to add internal copes to a profile or a plate.

At the command line prompt, first select the plates and/or profiles to be cut, and then press <Enter>.

You will then be prompted to indicate the PolyLine.

The PolyLine may be a Circle, a Rectangle, or a user-defined PolyLine.

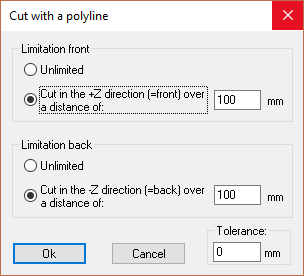

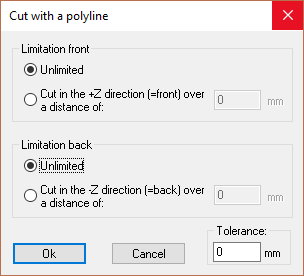

The following dialog will appear where you have the option of making the cut Unlimited - which will cut through the entity entirely - or alternatively, you may prescribe the depth of the cut.

The PolyLine before applying the cut

Cut result with unlimited depth

Cut result with limited depth in Z Direction
