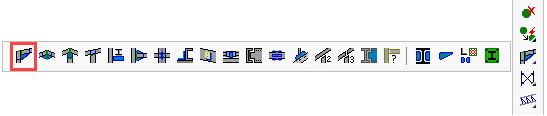

Command -



The Haunch connection is a roof rafter connection to a column flange. The rafter may be set to the horizontal or at any angle specified by the design.

Selection order

First select the column, and then the beam.

Note!

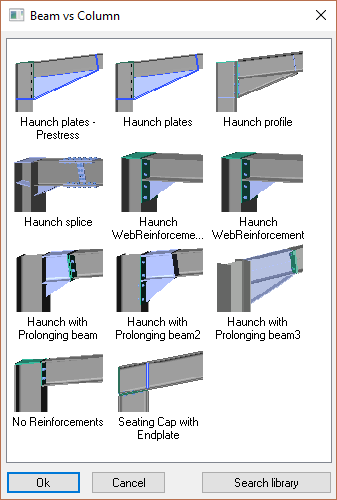

When selecting the profiles to be connected, Parabuild will automatically filter the proposed connections.

The filtering will not only be based on the profile types, but also their orientation with respect to each other. For example, Parabuild will recognize if a beam is connecting to a column flange or web. This information is used to filter out the incompatible connections in the selection dialog.

Therefore, the presented options may differ from those illustrated here.
