This command will add full depth apex end-plates for 2 trusses.

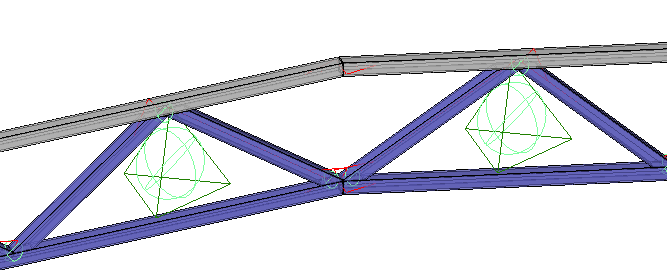

On activating the command you will be prompted to select in this order :
- The lower chord of the left truss
- The upper chord of the left truss
- The lower chord of the right truss
- The upper chord of the right truss

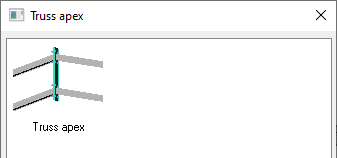

After selection, the options dialog will appear :

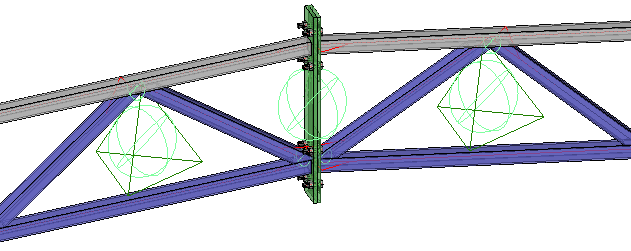

The end-plates will be drawn immediately :
