Command -  PrB_PointsBeam

Draws a beam constrained between 2 points

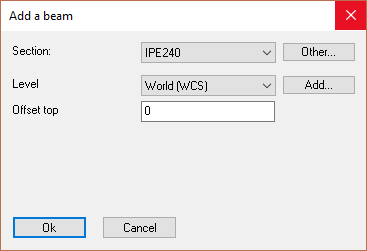

On activating this command, the Add a beam dialog will appear prompting you to select the profile to be drawn, together with the top level for the beam(s). If levels have already been established, they will be reflected here, additionally, you have the opportunity to create new levels.





You will then be prompted to Select the first point, followed by the next point - on completion,  press <Enter>.

The horizontal beams(s) will be drawn at the selected points, but at the height that was chosen in the first step. Moving or adjusting the points will automatically move the beams.

The beams will be constrained to the grid lines that are closest to the selected point. If you selected a point at an offset from a grid line, then this offset will become modifiable in the macro dialog. Just double-click the beam to open this dialog box.

The beams cannot move independently of the grid lines, unless if the profile is disconnected from the macro.
