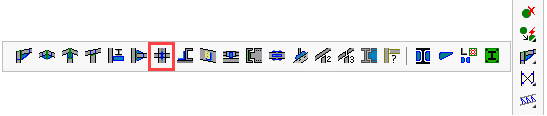

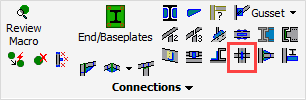

Command -




This connection group can be seen as the merger of 2 Beam to Column connections : When 2 beams both connect to the web of the column, then the 2 end plates will have to share the same bolts.

Or it might be a merge of 2 Beam Offset To Column connections : When 2 beams are spliced on top of the seat connection.

Selection order

First select the column, then beam 1 and then beam 2.

Note!

When selecting the profiles to be connected, Parabuild will automatically filter the proposed connections.

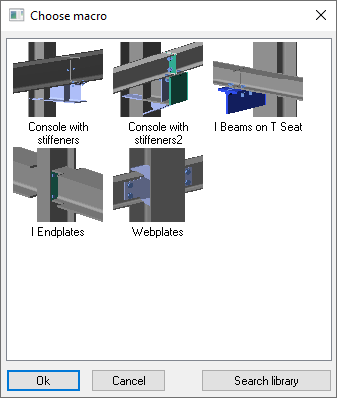

The filtering will not only be based on the profile types, but also their orientation with respect to each other. For example, Parabuild will recognize if a beam is connecting to a column flange or web. This information is used by this command to filter out the incompatible connections in the connection selection dialog.

Therefore, the presented options may differ from those illustrated here.
