Command - Prb_PointColumn

Draws a column on a point.

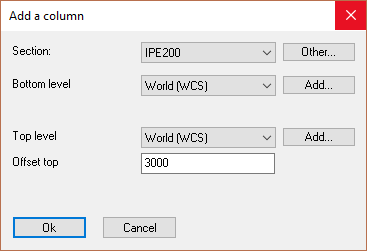

On activating this command, the Add a column dialog will appear prompting you to select the profile to be drawn, together with the top and bottom levels. If levels have already been established, they will be reflected here, additionally, you have the opportunity to create new levels or choose an extra height offset of the column by entering a value for Offset top.

.


After selection, you will be prompted to choose a point. You may then select multiple points if you so desire, and then press <Enter> to end the command.

The column will be constrained to the grid lines that are closest to the point. If you selected a point at an offset from a grid line, then this offset will become modifiable in the macro dialog. Just double-click the column to open this dialog box.

The column cannot be moved independently of the grid lines, unless if the profile is disconnected from the macro.
