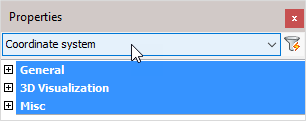

The 'Coordinate system' object type has the following headings:


3D Visualization


General: Is common to all object types, and covers general AutoCAD and BricsCAD settings, including: Color / Layer / Linetype / Linetype scale / Plot style / Lineweight / Transparency / Hyperlink / Handle /

3D Visualization: Is also common to all object types and includes: Material.

The material that is referred to here is only the visual representation material. For changing the actual material of parts, see the Additional Data section of plates, profiles or structures.

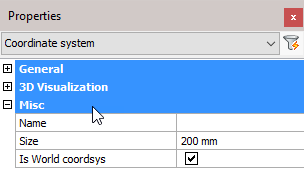

Name: User coordinate system name

Size: User coordinate system Icon size

Is World coordsys: This value can't be changed as there is always 1 World coordinate system in the drawing. Parabuild creates this coordinate system automatically.
