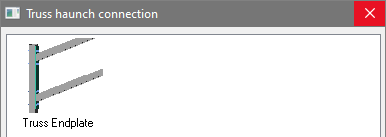

Command -


This command will add a full depth end-plate connection for a truss.

On activating the command you will be prompted to select in this order :

  1. The column
  2. The lower chord of the truss
  3. The upper chord of the truss

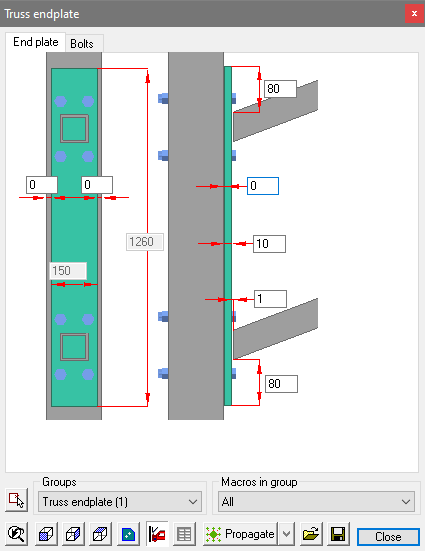

After selection, the options dialog will appear :

The end-plate will be drawn immediately :
