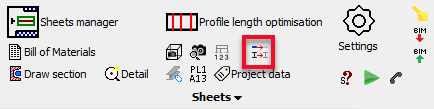

Command line name : PrB_DisableObjectsForOutput

This command allows you to disable an object so that it will not be shown in any output be that bills, workshop drawings or GA drawings.
This command will do different things depending on whether the selected object is owned by a macro or not :

  1. When the object is owned by a macro the command uses the macro to hide the object from model space. In this case the object will never be visible anymore and it will not appear on any generated output documents.
  2. If the object is not owned by a macro then the settings of the object are modified so that it does not show up on any generated output documents.

This tool might not be the best solution if you want to use this tool to disable output for an object that acts as an existing structure.

This tool might also entirely hide the object and will also disable the visibility of the object on General Arrangement views .

In this case you should instead change one of these settings to disable the output of the object :

  • The Structural type of the object to one of the existing types which are by default already defined in the types
  • The Output method of the properties of the object
