Command -


This command will draw a truss between square or rectangular hollow section columns.

This command will first prompt for the columns. When prompted to select the coordinate system, press <Enter>.

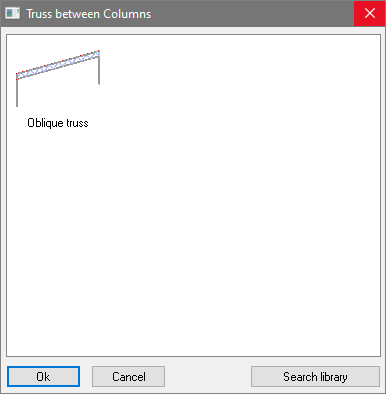

For now there is just 1 type of truss implemented in this tool :

For more information about the truss dialog box's options, see the Truss topic.

The truss is made up of a number of macros, each of which may be edited individually. Activate the Review macro command and indicate the green sphere of the chosen macro.

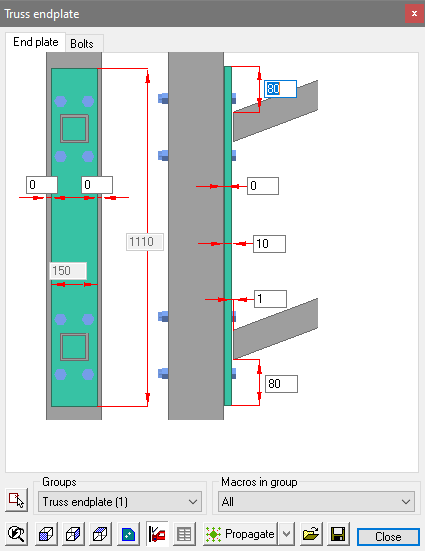

Example: To edit the end plate, select the macro sphere, press <Enter> or right-click the mouse button to open the macro edit dialog
